U-Pave completed Phase 1 of the pavement works as part of the new build, delivering fully constructed pavement sections from subgrade preparation through granular base placement and the installation of the bottom asphalt lift. Distinct pavement designs were constructed for light-duty areas, heavy-duty access routes, play areas, and municipal road tie-ins, each tailored to its intended loading and use.
All work was completed in accordance with project drawings and specifications, providing a stable, traffic-ready foundation and setting the stage for final surface paving in a subsequent phase.
Scope of Work Summary

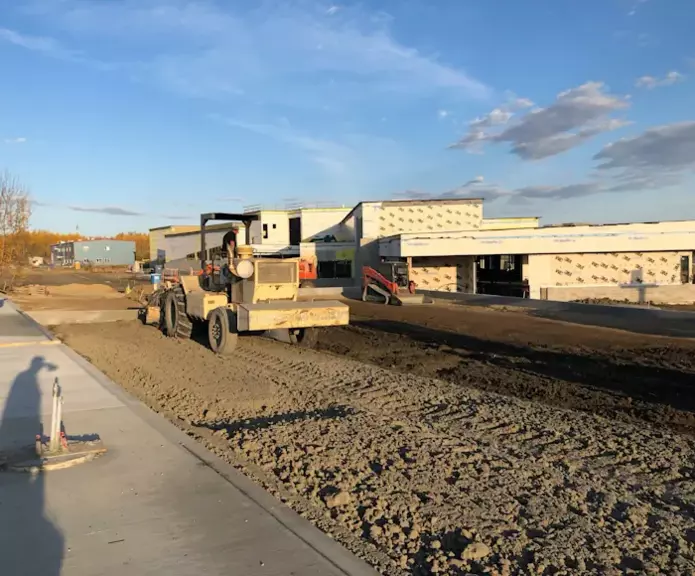

- Subgrade preparation to design depths for all pavement classifications
- Supply, placement, and compaction of granular base courses by use area
- Application of prime coat prior to asphalt placement
- Supply, placement, and compaction of bottom asphalt lift
- Site reconciliation and cleanup
A structurally complete pavement system constructed to the bottom asphalt lift, suitable for interim construction traffic and access only. The pavement provides a stable, durable base while protecting the underlying structure until final surface lifts are placed.
Final acceptance will be achieved following completion of Phase 2, which includes placement of the final asphalt surface courses.
Legal Description: Building No. B2216A Site No. S2216 Plan No. 023269
Project Quantities at a Glance
| Area Classification | Pavement Area | Structural Section (Completed) |
|---|---|---|
| Light Duty Asphalt | 1,375 m² | 300 mm subgrade prep 250 mm granular base 85 mm asphalt (bottom lift) |
| Heavy Duty Asphalt | 2,920 m² | 300 mm subgrade prep 350 mm granular base 120 mm asphalt (bottom lift) |
| Play Area | 220 m² | 300 mm subgrade prep 150 mm granular base 75 mm asphalt (bottom lift) |
| 8th Ave Road Works | 104 m² (13 m × 8 m) | New roadway construction to Top lift |
| 8th Ave Road Works | 117 m² (13 m × 9 m) | New roadway construction to Top lift |
Heavy-duty asphalt constructed using Alberta Infrastructure H2.
Result (Phase 1)
A structurally complete pavement system constructed to the bottom asphalt lift, suitable for interim construction traffic and access only. The pavement provides a stable, durable base while protecting the underlying structure until final surface lifts are placed.
Final acceptance will be achieved following completion of Phase 2, which includes placement of the final asphalt surface courses.
Legal Description: Building No. B2216A Site No. S2216 Plan No. 023269
Project Overview
Location
2500 6 Ave, Wainwright, AB T9W 1V8
Project Type
Construction of a Complete Pavement Structure
Client
Alberta Infrastructure General Contractor - Shunda Consulting & Construction Management Ltd & Prairie North Construction Ltd.
Status
Interim Completion - Bottom Asphalt Lift Installed (2nd Phase 2026 Spring)
